If the introductory product series of the speaker brand indirectly make you feel the unique sound characteristics and direction pursued by the brand, the mainstream product series will enable you to further experience the important position of depth. The Q series is the mainstream series of Kooon Audio. KOOON pursues quality, high power, high sound quality and high quality combined with the unique stiffness of Brich Wood to create dense sound. It is easy to install with many installation points on the shell.
About ImP
Products
Downloads
Q Series
Mainstream Point Source Speaker
Qseries
Q.8 Downloads
Description
· Compact Size Full-Range Speaker
· 8" Bass & Mid Bass Frequency Neodymium Driver
· 1" High Frequency Compression Driver
· Premium Birch PlyWood 15T Enclosure
· Dedicated Passive Network
· Provide DSP Data

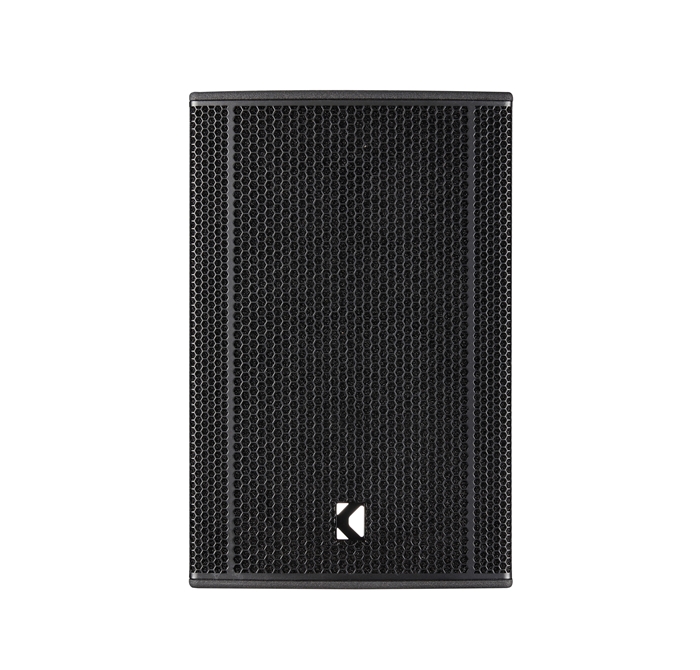

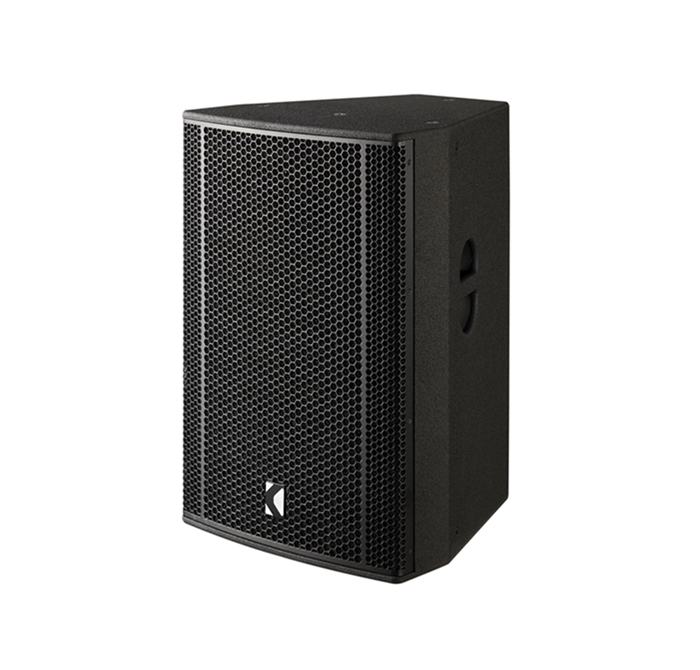

Q.8 is an 8-inch compact speaker. It is impressive for the deep mid-range and clear high-end, and is particularly excellent for voice playback. It is suitable for use as a main speaker or a delay speaker in a small 100-seat space. By applying the optimal passive network, it is possible to produce the best sound anytime, anywhere, and when using dedicated amplifiers including K2008, DSP data is provided for improved performance.
TECHNICAL SPECIFICATIONS
| Type | Passive | AES Power / Program Power / Peak Power | 300W / 600W / 1200W |
|---|---|---|---|
| Nominal Impedance | 8Ω | Sensitivity (1W / 1m) | 95dB |
| Max SPL | 126dB | Dispersion Angle(Horn) | 90°(Narrow) & 120°(Wide) x 20°(Up) & 40°(Down) |
PRODUCT FEATURES
| Frequency Range (-10dB) | 75Hz ~ 20kHz | Weight | 12.95kg |
|---|---|---|---|
| Dimensions (W x H x D mm) | 270×451×263 (mm) | Rigging Point | 11 x M10 inserts (4 x Top, 3 x Bottom, 2 x Left, 2 x Right), Single Hole Cup |
| Connection | 2 X Speakon (1+,1-) [Parallel] | Painting | Polyurea Coating |
Q.10 Downloads
Description
· Medium Size Full-Range Speaker
· 10" Bass & Mid Bass Frequency Neodymium Driver
· 1" High Frequency Compression Driver
· Premium Birch Plywood 15T Enclosure
· Dedicated Passive Network
· Provide DSP Data

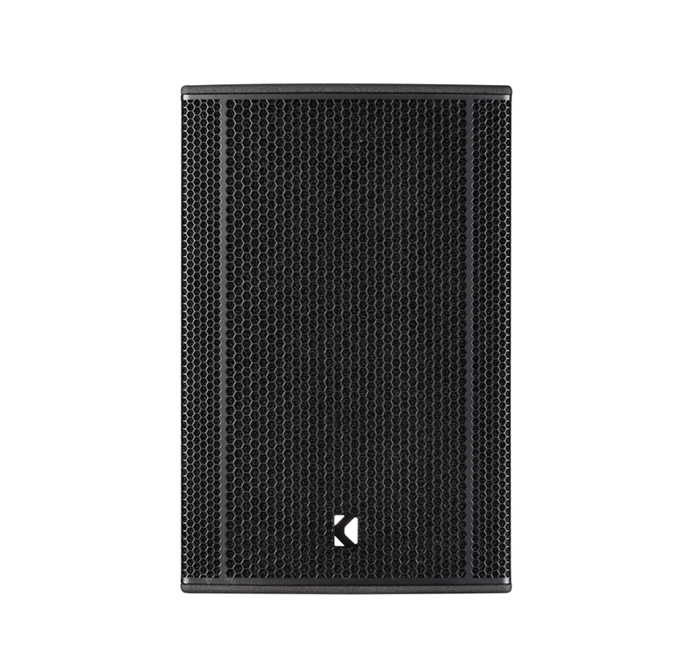

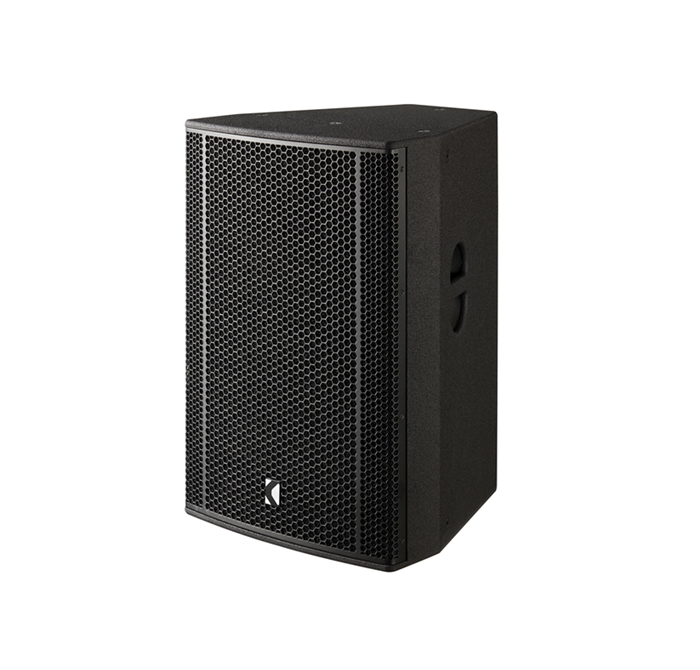

The Q.10 is a 10-inch medium-sized speaker that shows excellent performance for voice and music playback. It is very good to be used as the main speaker or delay speaker in a small auditorium with a capacity of 100 seats. The optimal passive network is applied in preparation to produce the best sound at the right place and right time. When using a dedicated amplifier, including K2008, DSP data is provided for improved performance.
TECHNICAL SPECIFICATIONS
| Type | Passive | AES Power / Program Power / Peak Power | 300W / 600W / 1200W |
|---|---|---|---|
| Nominal Impedance | 8Ω | Sensitivity (1W / 1m) | 95dB |
| Max SPL | 126dB | Dispersion Angle(Horn) | 90°(Narrow) & 120°(Wide) x 20°(Up) & 40°(Down) |
PRODUCT FEATURES
| Frequency Range (-10dB) | 55Hz ~ 20kHz | Weight | 14.74kg |
|---|---|---|---|
| Dimensions (W x H x D mm) | 310×492×323 (mm) | Rigging Point | 11 x M10 inserts (4 x Top, 3 x Bottom, 2 x Left, 2 x Right), Single Hole Cup |
| Connection | 2 X Speakon (1+,1-) [Parallel] | Painting | Polyurea Coating |
Q.12 Downloads
Description
· Full Size Full-Range Speaker
· 12" Bass & Mid Bass Frequency Neodymium Driver
· 1.4" High Frequency Compression Driver
· Premium Birch Plywood 15T Enclosure
· Dedicated Passive Network
· Provide DSP Data

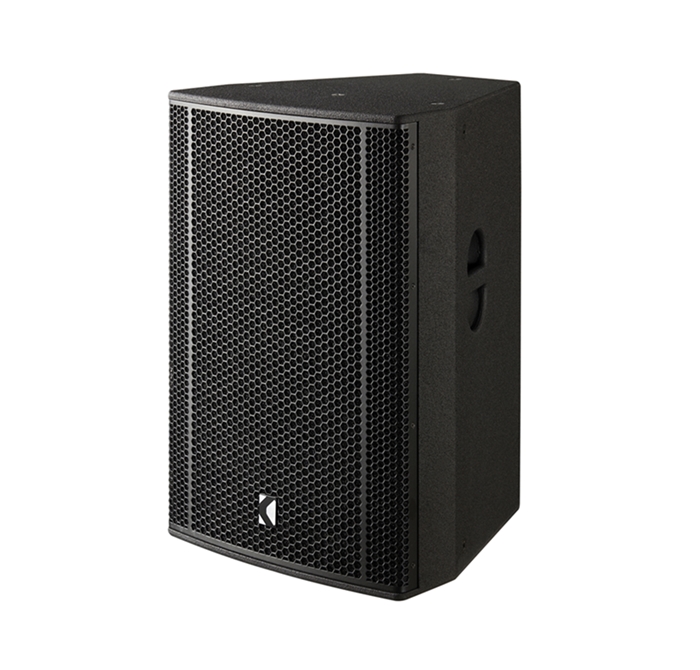

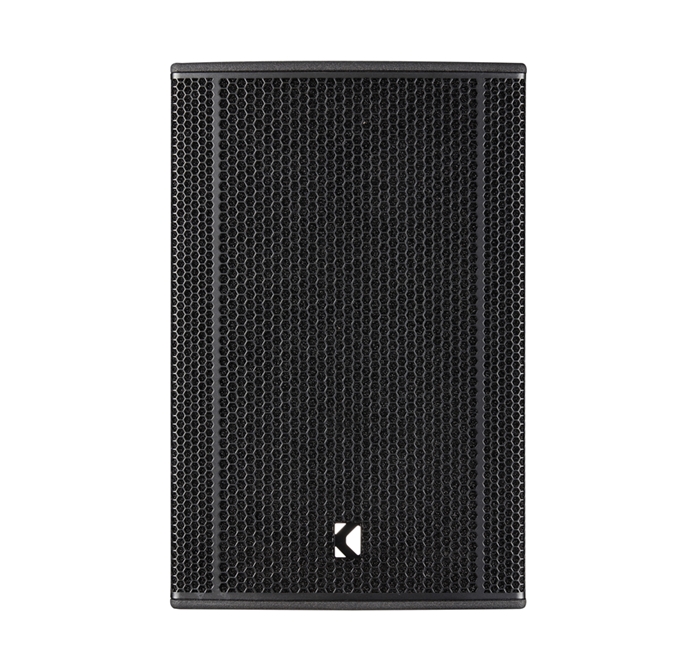

Q.12 is a 12-inch medium and large-sized speaker, which is particularly valuable in music playback. The 12-inch woofer's unique tight low-range response makes the music more lively, and the mid-high range response, where depth and clarity coexist, makes listeners admire it. It is very good to be used as the main speaker of a small auditorium with a capacity of 200 seats. The optimal passive network is applied to give the best sound at the right time and place. When using a dedicated amplifier, including K2008, DSP data is provided for improved performance.
TECHNICAL SPECIFICATIONS
| Type | Passive | AES Power / Program Power / Peak Power | 500W / 1000W / 2000W |
|---|---|---|---|
| Nominal Impedance | 8Ω | Sensitivity (1W / 1m) | 98dB |
| Max SPL | 131dB | Dispersion Angle(Horn) | 90° x 40° |
PRODUCT FEATURES
| Frequency Range (-10dB) | 55Hz ~ 18.2kHz | Weight | 21.99kg |
|---|---|---|---|
| Dimensions (W x H x D mm) | 362×610×372 (mm) | Rigging Point | 14 x M10 inserts (4 x Top, 4 x Bottom, 2x Rear, 2 x Left, 2 x Right), Single Hole Cup |
| Connection | 2 X Speakon (1+,1-) [Parallel] |
Q.15 Downloads
Description
· Over Size Full-Range Speaker
· 15" Bass & Mid Bass Frequency Neodymium Driver
· 1.4" High Frequency Compression Driver
· Premium Birch Plywood 15T Enclosure
· Dedicated Passive Network
· Provide DSP Data

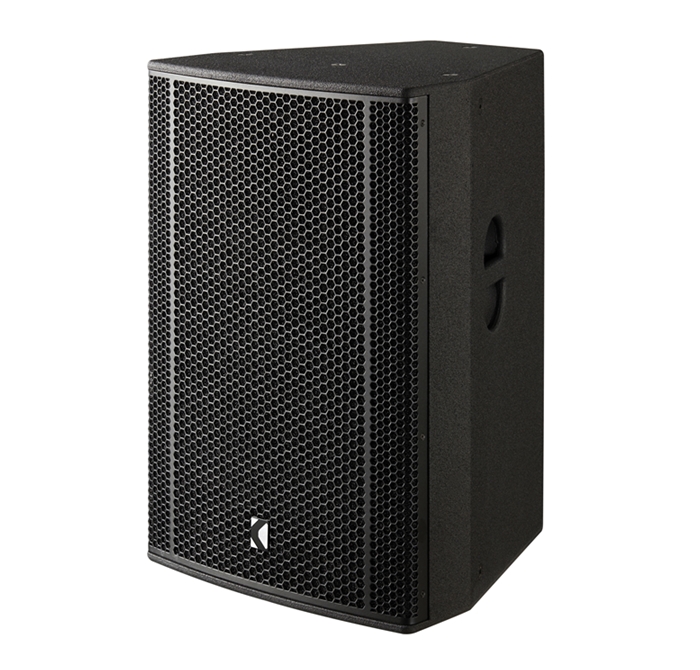

Q.15 is a 15-inch large-sized speaker and has excellent low frequency reproduction power of the woofer, so you can expect a rich low range without a separate subwoofer. It is very good to be used as a main speaker in a space of 300 seats. The optimal passive network is applied to give the best sound in the right place at the right time. When using a dedicated amplifier, including K2008, DSP data is provided for improved performance.
TECHNICAL SPECIFICATIONS
| Type | Passive | AES Power / Program Power / Peak Power | 700W / 1400W / 2800W |
|---|---|---|---|
| Nominal Impedance | 8Ω | Sensitivity (1W / 1m) | 98dB |
| Max SPL | 133dB | Dispersion Angle(Horn) | 90° x 40° |
PRODUCT FEATURES
| Frequency Range (-10dB) | 55Hz ~ 20kHz | Weight | 28.99kg |
|---|---|---|---|
| Dimensions (W x H x D mm) | 462×706×465 (mm) | Rigging Point | 14 x M10 inserts (4 x Top, 4 x Bottom, 2 x Rear, 2 x Left, 2 x Right), Single Hole Cup |
| Connection | 2 X Speakon (1+,1-) [Parallel] |
