The flagship product series represents the brand's present and future. Showcasing the best technology and future direction of the brand, the N series is representative of Kooon Audio. Based on the accurately designed Brich Wood shell, through the application of the PCB network designed in cooperation with well-known overseas brands, you can feel the best sound of the N series. In the entire point source product series, only the 12-inch and 15-inch models of the N series have applied passive and bi-amp mode. And when using a dedicated power amplifier, DSP data will be provided so that the best sound can be reproduced at any time and anywhere. Starting from the luxurious appearance of the mainstream Q series, the N series adopts an upgraded exclusive grill to complete the highest-grade appearance design.
About ImP
Products
Downloads
N Series
Flagship Point Source Speaker
Nseries

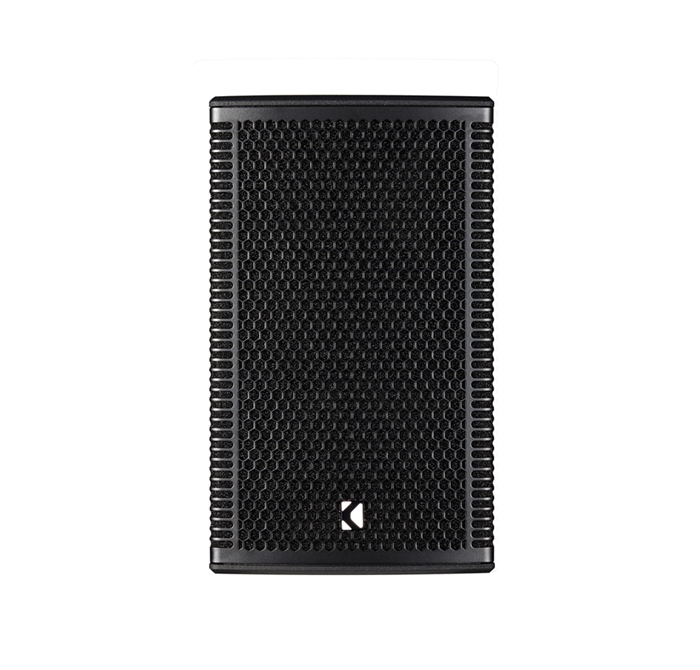

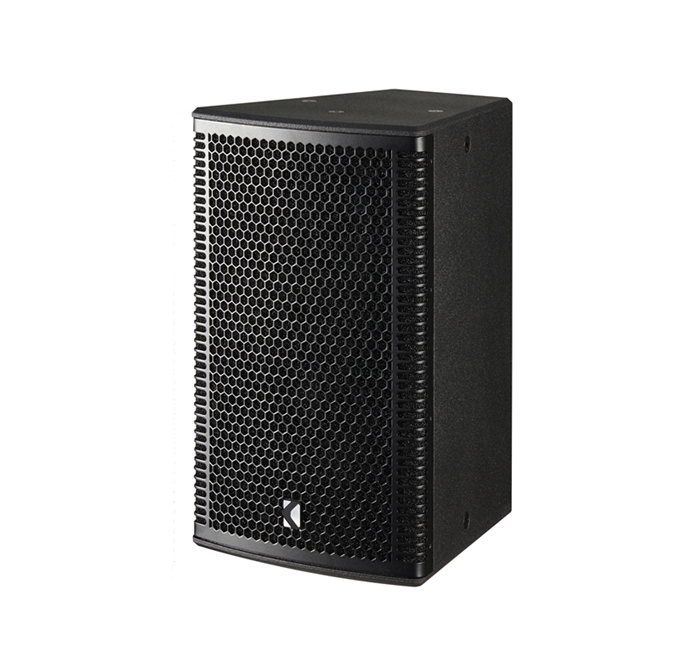

N.8 Downloads
Description
· Compact Size Full-Range Speaker
· 8" High Performance Low Frequency Neodymium Driver
· 1" High Frequency Compression Driver
· Premium Birch PlyWood 15T Enclosure
· Dedicated Passive Network
· Use with N.S Sub woofer Series
· Provide DSP Data
This is the most compact 8-inch speaker in the N Series, Kooon Audio's flagship lineup. On the front, there is a horizontal luxurious pattern which symbolizes the flagship product, and input terminal on the back, there is a steel panel to protect it from external shock. The 11 rigging points provide convenience during installation. The stand folding mount at the bottom is good for small performances and lectures.
TECHNICAL SPECIFICATIONS
| Type | Passive | AES Power / Program Power / Peak Power | 300W / 600W / 1200W |
|---|---|---|---|
| Nominal Impedance | 8Ω | Sensitivity (1W / 1m) | 95dB |
| Max SPL | 126dB | Dispersion Angle(Horn) | 90° x 40° |
PRODUCT FEATURES
| Frequency Range (-10dB) | 65Hz ~ 20kHz | Weight | 14.48kg |
|---|---|---|---|
| Dimensions (W x H x D mm) | 278×492×288 (mm) | Rigging Point | 11 x M10 inserts (4 x Top, 3 x Bottom, 2 x Left, 2 x Right), Single Hole Cup |
| Connection | 2 X Speakon (1+,1-) [Parallel] | Painting | Polyurea Coating |

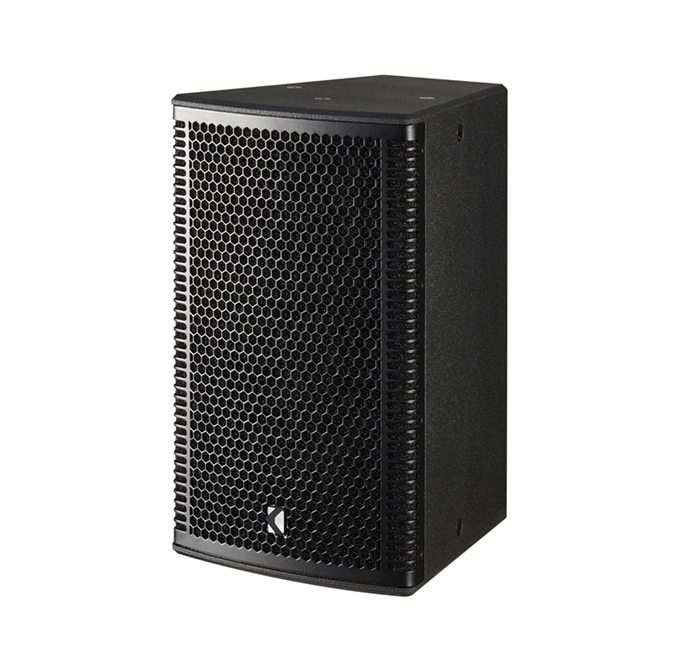

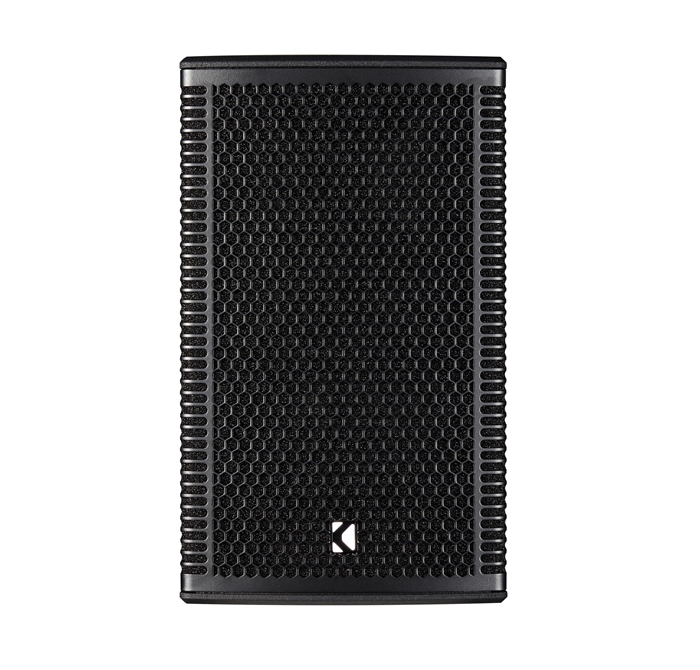

N.10 Downloads
Description
· Medium Size Full-Range Speaker
· 10" High Performance Low Frequency Neodymium Driver
· 1" High Frequency Compression Driver
· Premium Birch Plywood 15T Enclosure
· Dedicated Passive Network
· Use with N.S Sub woofer Series
· Provide DSP Data
The N.10 is a great speaker for use in small auditoriums with less than 200 seats or small outdoor performances. In addition to the solid and dense sound of the N Series, it also has a strong sound pressure and output compared to its size. US-origin polyurea coating secures not only luxurious appearance, but also durability, and a special grille is used to express the unique characteristics of the flagship model.
TECHNICAL SPECIFICATIONS
| Type | Passive | AES Power / Program Power / Peak Power | 400W / 800W / 1600W |
|---|---|---|---|
| Nominal Impedance | 8Ω | Sensitivity (1W / 1m) | 96dB |
| Max SPL | 127dB | Dispersion Angle(Horn) | 90° x 40° |
PRODUCT FEATURES
| Frequency Range (-10dB) | 55Hz ~ 20kHz | Weight | 19.41kg |
|---|---|---|---|
| Dimensions (W x H x D mm) | 331×552×359 (mm) | Rigging Point | 11 x M10 inserts (4 x Top, 3 x Bottom, 2 x Left, 2 x Right), Single Hole Cup |
| Connection | 2 X Speakon (1+,1-) [Parallel] | Painting | Polyurea Coating |

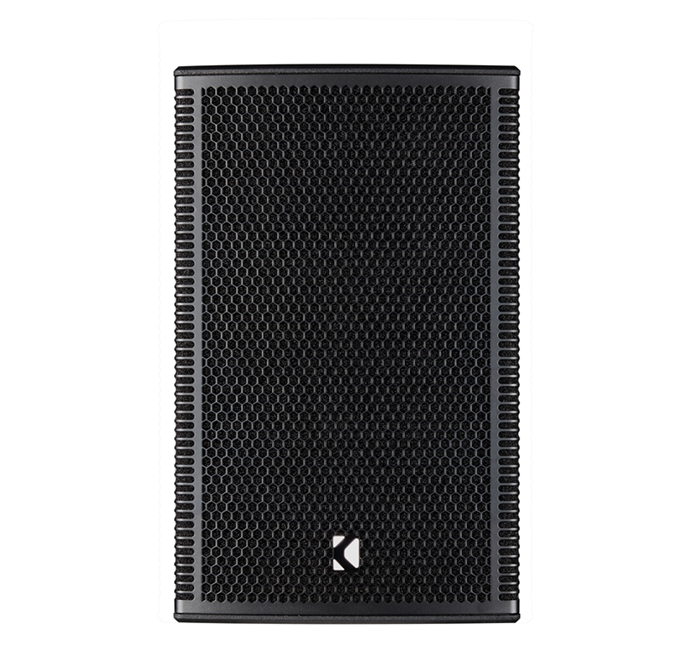

N.12 Downloads
Description
· Full Size Full-Range Speaker
· 12" High Performance Low Frequency Neodymium Driver
· 1.4" High Frequency Compression Driver
· Bi-amp & Passive Mode Switch
· Premium Birch Plywood Enclosure
· Use with N.S Sub woofer Series
· Provide DSP Data
The N.12 is a model suitable for use as the main speaker of small and medium-sized religious facilities or auditoriums with less than 300 seats. 12-inch's unique wide playback band shows excellent performance not only for speech events but also for music playback. In N.12, a Bi-amp & Passive switch is applied, so the user can freely change the mode and use it if desired. When using the dedicated digital power mp, K2008 or K8008, DSP data is provided so that you can enjoy the best sound quality anytime, anywhere.
TECHNICAL SPECIFICATIONS
| Type | Bi-amp & Passive | AES Power / Program Power / Peak Power | LF : 500W / HF : 70W / Passive : 500W / 1000W / 2000W |
|---|---|---|---|
| Nominal Impedance | 8Ω | Sensitivity (1W / 1m) | LF : 97dB / HF : 111dB / Passive : 98dB |
| Max SPL | LF : 130dB / HF : 135dB / Passive :133dB | Dispersion Angle(Horn) | 80° x 50° |
PRODUCT FEATURES
| Frequency Range (-10dB) | 45Hz ~ 18kHz | Weight | 24.00kg |
|---|---|---|---|
| Dimensions (W x H x D mm) | 372 x 638 x 402 (mm) ±5mm | Rigging Point | 14 x M10 inserts (4 x Top, 4 x Bottom, 2 x Rear, 2 x Left, 2 x Right), Dual Hole Cup |
| Connection | 2 X Speakon [Parallel], Bi-amp & Passive Switch | Painting | Polyurea Coating |

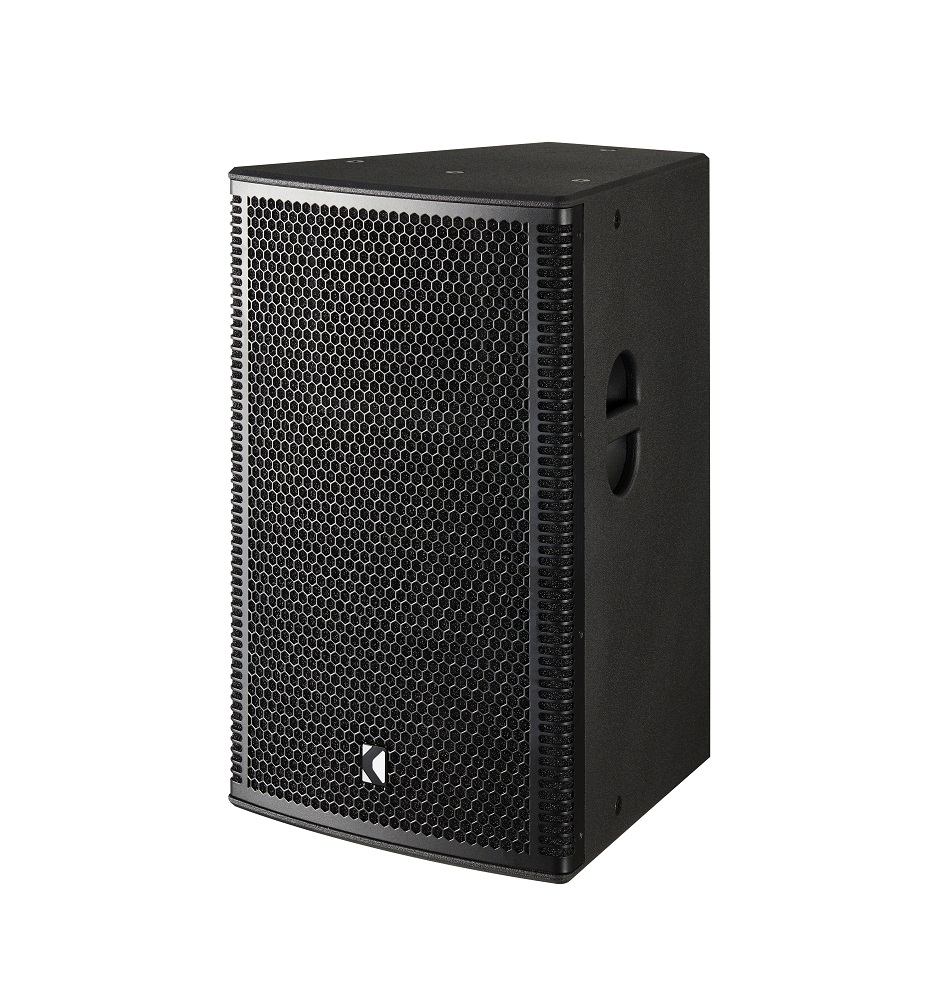

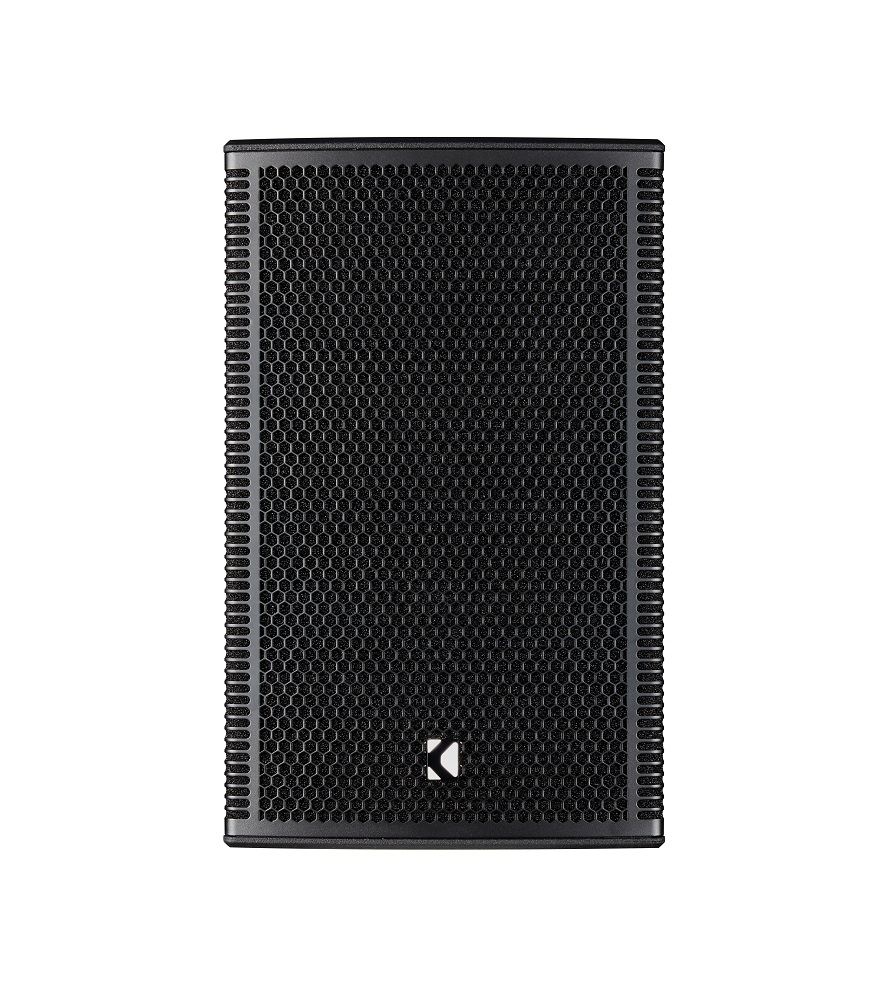

N.15 Downloads
Description
· Over Size Full-Range Speaker
· 15" High Performance Low Frequency Neodymium Driver
· 1.4" High Frequency Compression Driver
· Bi-amp & Passive Mode Switch
· Premium Birch Plywood Enclosure
· Dedicated Passive Network
· Provide DSP Data
The N.15 is the largest speaker in the flagship line-up of the N.Series products. Based on the rich bass reproduction power of the 15-inch unit, sufficient music play is possible without a separate woofer, and maximized bass reproduction is achieved when its use together with a dedicated woofer. With the 12-inch model, Bi-amp mode can be easily set by turning on the switch, and when using the dedicated digital power amps K2008 and K8008, optimized DSP data is used to provide the best sound quality anytime, anywhere.
TECHNICAL SPECIFICATIONS
| Type | Bi-amp & Passive | AES Power / Program Power / Peak Power | LF : 700W / HF : 70W / Passive : 700W / 1400W / 2800W |
|---|---|---|---|
| Nominal Impedance | 8Ω | Sensitivity (1W / 1m) | LF : 98dB / HF : 112dB / Passive : 99dB |
| Max SPL | LF : 132dB / HF : 136dB / Passive : 134dB | Dispersion Angle(Horn) | 80° x 50° |
PRODUCT FEATURES
| Frequency Range (-10dB) | 35Hz ~ 18kHz | Weight | 28.05kg |
|---|---|---|---|
| Dimensions (W x H x D mm) | 443 x 711 x 452 (mm) ±5mm | Rigging Point | 14 x M10 inserts (4 x Top, 4 x Bottom, 2 x Rear, 2 x Left, 2 x Right), Dual Hole Cup |
| Connection | 2 X Speakon [Parallel], Bi-amp & Passive Switch | Painting | Polyurea Coating |
