KM Series

Coaxial Stage Monitor (Compact)

KMseries

The role of stage monitor speakers is very important. Especially in large concert halls, direct and indirect sound from a large number of speakers and enthusiastic audience shouts will affect the monitoring environment of singers and performers. Therefore, stage monitoring must ensure sufficient sound pressure, clarity and straightness. The KM series are monitor speakers that play real value in this environment. By using a high-performance coaxial unit, compared with the compact housing size, it has a strong sound pressure and clear sound, and an ideal listening angle. In addition, the through hole can be used as a side-filled speaker or a main speaker for small and medium-sized spaces. There are two types of KM series, active type and passive type. The passive type can reproduce the best sound through a well-designed passive network. The active type uses the Powersoft DSP module and power module, and has built-in dedicated DSP data to reproduce better sound.

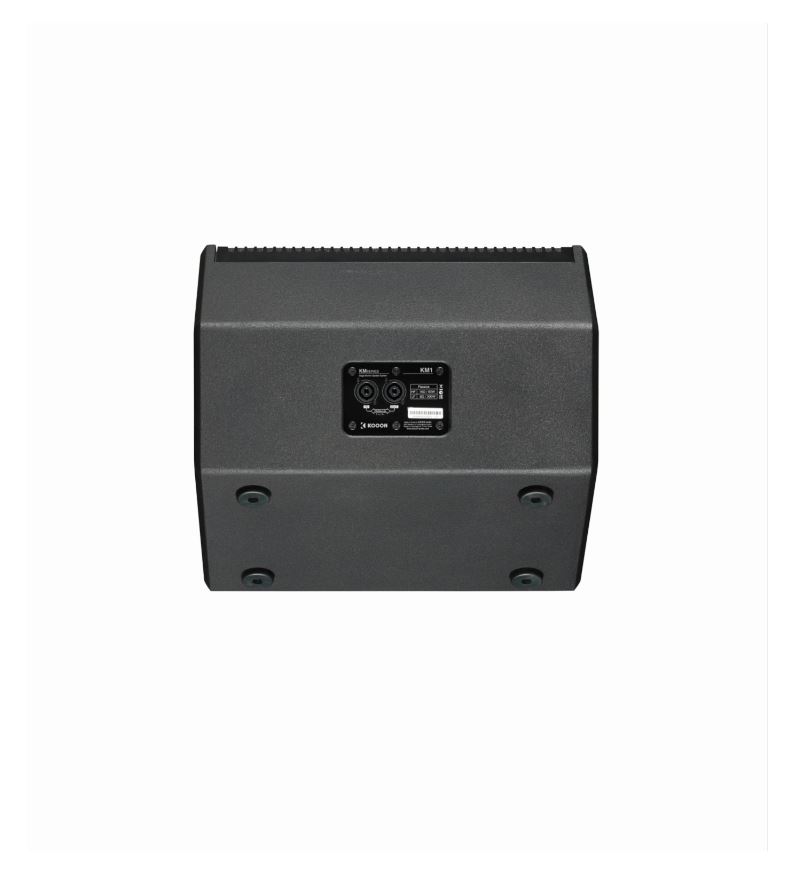

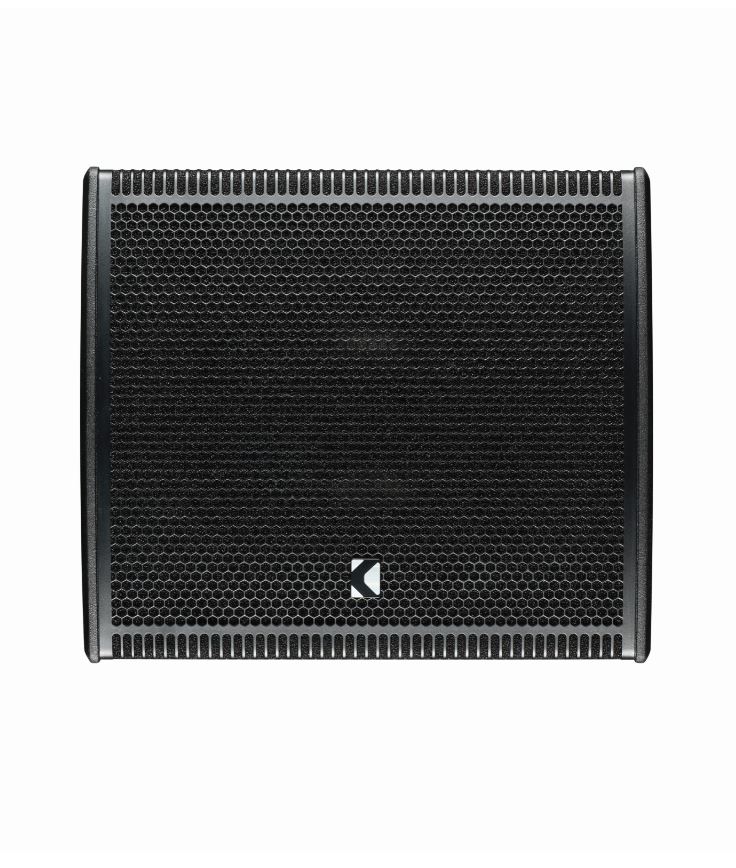

KM1 Downloads

Description

· 8" High Performance Coaxial Driver

· Premium Birch PlyWood Enclosure

· Dedicated Passive Network

· Provide DSP Data


The KM1 is a stage monitor speaker with a single high performance coaxial unit. It has the most compact standard among the KM Series, and features a straight and sharp tone compared to the size of the exterior. In addition, compared to other KM series, it minimizes the energy loss of the lineup such as output and sound pressure, while reducing the size and weight to facilitate frequent movements such as rentals, tours, and outdoor performances, and has durability and convenience on both sides of the equipment. This is a model with an added handle. In addition, it provides the highest level of stability within the brand in terms of durability as we put more effort into painting and coating work than existing models in preparation for external shocks while moving. Furthermore, by applying a precisely tuned passive network, you can reproduce the best sound anytime, anywhere, and you can feel more enhanced sound when using a dedicated amplifier.

TECHNICAL SPECIFICATIONS

Type 2Way Coaxial Passive Monitor AES Power / Program Power / Peak Power 300W / 600W / 1200W
Nominal Impedance LOW : 8Ω / HIGH : 16Ω Sensitivity (1W / 1m) 94dB
Max SPL 124dB Dispersion Angle(Horn) (HxV) : 255˚x283˚(1kHz) / 88˚x74˚(4kHz)

PRODUCT FEATURES

Frequency Range (-10dB) 77Hz~20kHz Weight 15.3kg
Dimensions (W x H x D mm) 463 X 316 X 438 (mm)±5mm Rigging Point -
Connection 2 X SPEAKON [Parallel] Passive(1+,1-) Painting Polyurea Coating

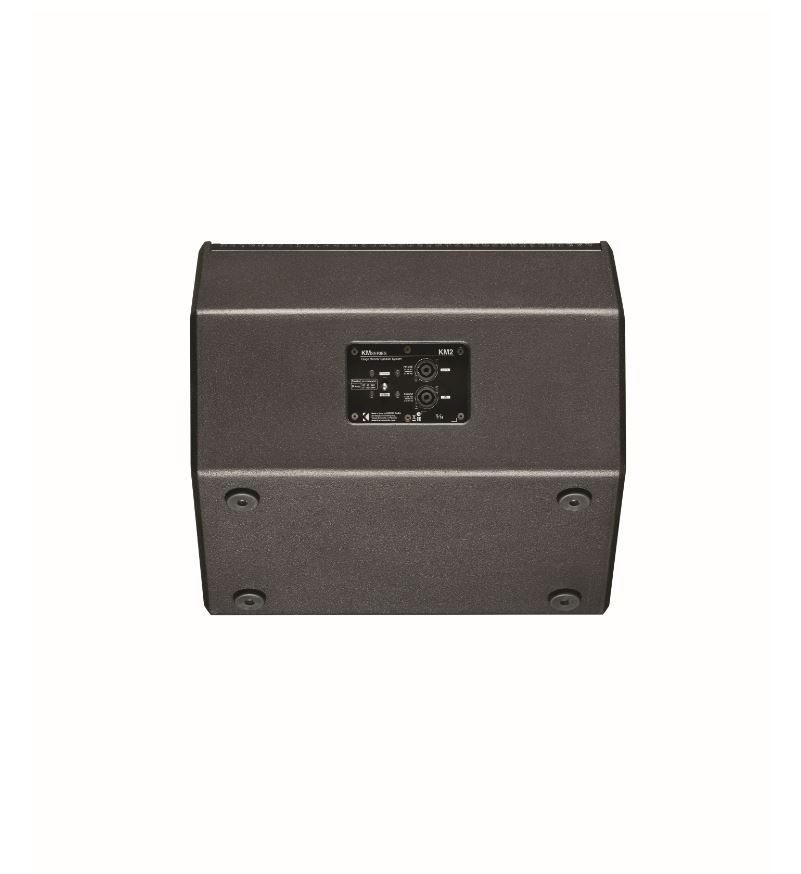

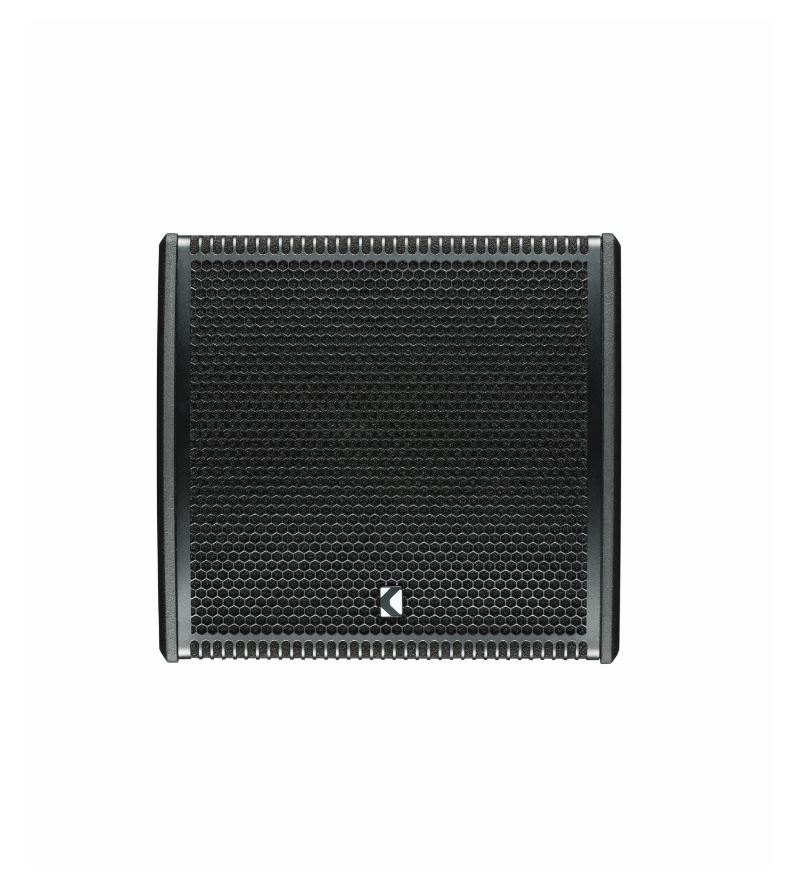

KM2 Downloads

Description

· 12" High Performance Coaxial Driver

· Premium Birch PlyWood Enclosure

· Dedicated Passive Network

· Provide DSP Data


The KM2 is a stage monitor speaker with a single High Performance Coaxial Unit applied. A 12-inch driver like the KM12 was used, but while minimizing the energy loss of the lineup such as output and sound pressure, the size and weight were reduced to facilitate frequent movement such as rentals, tours, and outdoor performances. It is a model that adds a handle with convenience at the same time. It features a straight and sharp tone compared to the size of the exterior, and also provides the highest stability in the brand in terms of durability as it has put more effort into painting and coating work than existing models in preparation for external shocks while moving. Furthermore, by applying a precisely tuned passive network, you can reproduce the best sound anytime, anywhere, and you can feel more enhanced sound when using a dedicated amplifier.


TECHNICAL SPECIFICATIONS

Type 2Way Coaxial Passive & Bi-Amp Monitor AES Power / Program Power / Peak Power 350W / 700W / 1400W
Nominal Impedance LOW : 8Ω / HIGH : 8Ω Sensitivity (1W / 1m) 97dB
Max SPL 128dB Dispersion Angle(Horn) (HxV) : 104˚x91˚(1kHz) / 61˚x44˚(4kHz)

PRODUCT FEATURES

Frequency Range (-10dB) 90Hz~18kHz Weight 18.00kg
Dimensions (W x H x D mm) 507 x 342 x 431 (mm) ±5mm Rigging Point -
Connection 2 X SPEAKON [Parallel] Bi-Amp(1±,2±)/Passive(1+,1-) Switch Painting Polyurea Coating

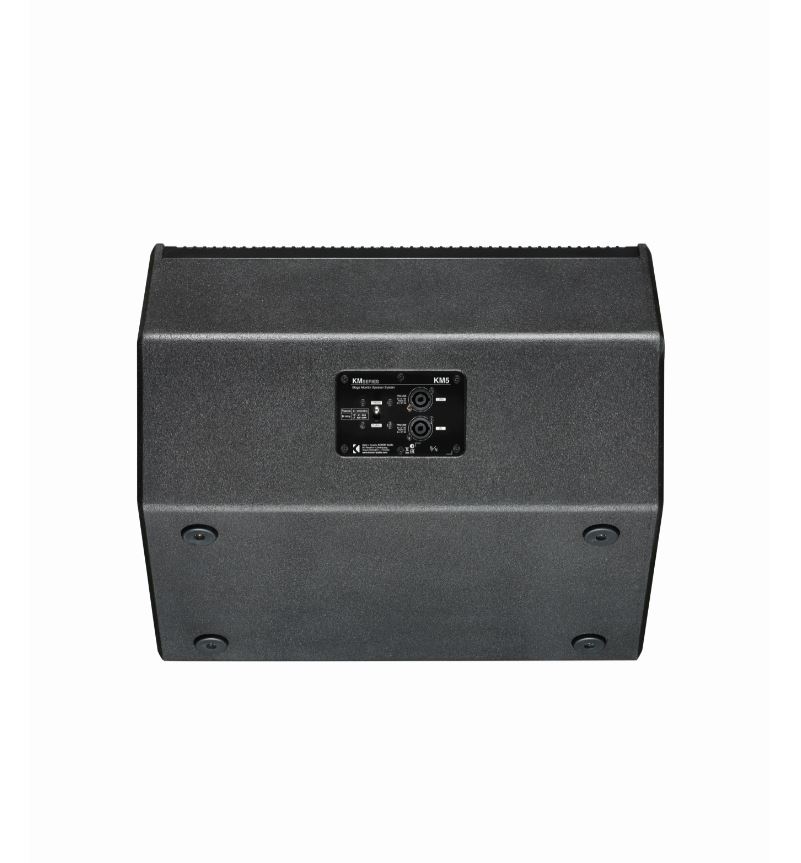

KM5 Downloads

Description

· 15" High Performance Coaxial Driver

· Premium Birch PlyWood Enclosure

· Dedicated Passive Network

· Provide DSP Data


The KM5 is a stage monitor speaker with a single high performance coaxial unit. A 15-inch driver like the KM15 was used, but while minimizing the energy loss of the lineup such as output and sound pressure, the size and weight were reduced to facilitate frequent movement such as rentals, tours, and outdoor performances. It is a model that adds a handle with convenience at the same time. It features a straight and sharp tone compared to the size of the exterior, and also provides the highest stability in the brand in terms of durability as it has put more effort into painting and coating work than existing models in preparation for external shocks while moving. Furthermore, by applying a precisely tuned passive network, you can reproduce the best sound anytime, anywhere, and you can feel more enhanced sound when using a dedicated amplifier.


TECHNICAL SPECIFICATIONS

Type 2Way Coaxial Passive & Bi-Amp Monitor AES Power / Program Power / Peak Power 400W / 800W / 1600W
Nominal Impedance LOW : 8Ω / HIGH : 8Ω Sensitivity (1W / 1m) 98dB
Max SPL 130dB Dispersion Angle(Horn) (HxV) : 86˚x64˚(1kHz) / 72˚x64˚(4kHz)

PRODUCT FEATURES

Frequency Range (-10dB) 87Hz ~ 17kHz Weight 20.80kg
Dimensions (W x H x D mm) 582 x 361 x 512 (mm) ± 5 mm Rigging Point -
Connection 2 X SPEAKON [Parallel] Bi-Amp(1±,2±)/Passive(1+,1-) Switch Painting Polyurea Coating

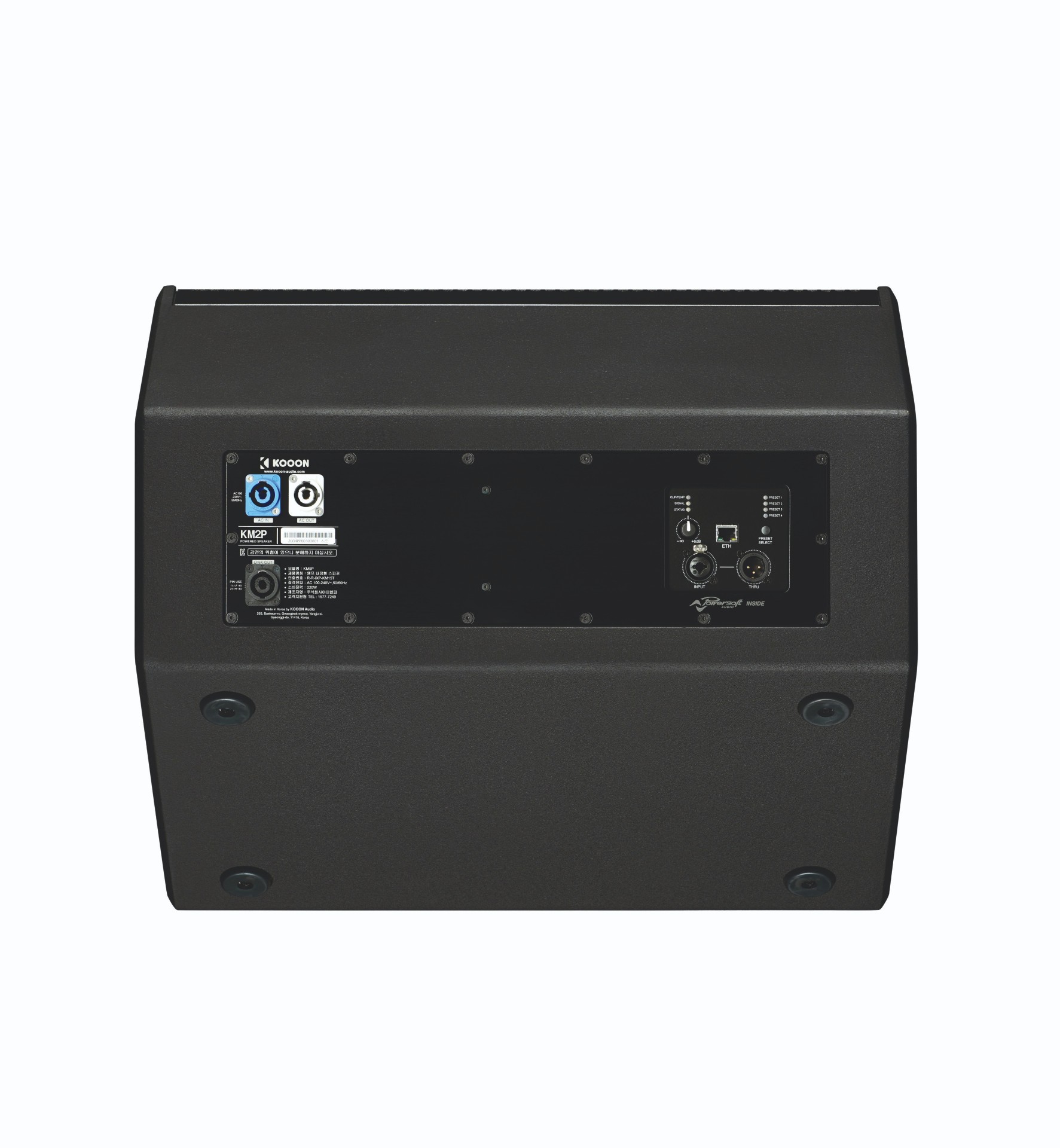

KM2P Downloads

Description

· 12" High Performance Coaxial Driver
· Premium Birch PlyWood Enclosure
· Dedicated Powersoft DSP & Power Module
· Provide DSP Data

The KM2 is a stage monitor speaker with a single High Performance Coaxial Unit applied. A 12-inch driver like the KM12 was used, but while minimizing the energy loss of the lineup such as output and sound pressure, the size and weight were reduced to facilitate frequent movement such as rentals, tours, and outdoor performances. It is a model that adds a handle with convenience at the same time. It is characterized by a straight and sharp tone compared to the size of the exterior, and also provides the highest stability in the brand in terms of durability as it has put more effort into painting and coating work than existing models in preparation for external shocks while moving. It boasts the best sound and thoroughly proven durability by using DSP and Power Module from Powersoft, a world-class power amp manufacturer. In addition, the optimal data is built-in, so you can feel the best sound anytime, anywhere.

TECHNICAL SPECIFICATIONS

Type Powered Nominal Impedance LOW : 8Ω / HIGH : 8Ω
Max SPL 128dB AES Power / Program Power / Peak Power Channel per 1000W
Sensitivity (1W / 1m) 97dB Dispersion Angle(Horn) (HxV) : 104˚x91˚(1kHz) / 61˚x44˚(4kHz)

PRODUCT FEATURES

Frequency Range (-10dB) 90Hz~18kHz Dimensions (W x H x D mm) 507 x 342 x 431 (mm) ±5mm
Connection 2 X SPEAKON [Parallel] Bi-Amp(1±,2±)/Passive(1+,1-) Switch Weight 18.00kg
Rigging Point - Painting Polyurea Coating

KM5P Downloads

Description

· 15" High Performance Coaxial Driver
· Premium Birch PlyWood Enclosure
· Dedicated Powersoft DSP & Power Module
· Provide DSP Data

The KM5 is a stage monitor speaker with a single high performance coaxial unit. A 15-inch driver like the KM15 was used, but while minimizing the energy loss of the lineup such as output and sound pressure, the size and weight were reduced to facilitate frequent movement such as rentals, tours, and outdoor performances. It is a model that adds a handle with convenience at the same time. It features a straight and sharp tone compared to the size of the exterior, and also provides the highest stability in the brand in terms of durability as it has put more effort into painting and coating work than existing models in preparation for external shocks while moving. By using the DSP and Power Module of Powersoft, the world's leading power amp manufacturer, it boasts the best sound as well as thoroughly proven durability. In addition, the optimal data is built-in, so you can feel the best sound anytime, anywhere.

TECHNICAL SPECIFICATIONS

Type 2Way Coaxial Passive & Bi-Amp Monitor Nominal Impedance LOW : 8Ω / HIGH : 8Ω
Max SPL 130dB AES Power / Program Power / Peak Power Channel per 1000W
Sensitivity (1W / 1m) 98dB Dispersion Angle(Horn) (HxV) : 86˚x64˚(1kHz) / 72˚x64˚(4kHz)

PRODUCT FEATURES

Frequency Range (-10dB) 87Hz ~ 17kHz Dimensions (W x H x D mm) 582 x 361 x 512 (mm) ± 5 mm
Connection 2 X SPEAKON [Parallel] Bi-Amp(1±,2±)/Passive(1+,1-) Switch Weight 21.30kg
Rigging Point - Painting Polyurea Coating
