The K300 / K500 / K900 / K1200 / K1500 series contains the trends of the world's highest-power power amplifier. It is a high-power amplifier that can output a rich volume despite its compact size and light weight. It provides stable operation, sufficient pressure, and various protective devices to secure the reliability of the amplifier even in poor use environments.
About ImP
Products
Downloads
KA Series
ANALOG AMPLIFIER
KAseries
K300 Downloads
Description
· 2Ω Load Stable Per Channel, 4Ω Load Stable in Bridge Mono
· 2U Rack Space
· SMPS Available for High Efficiency and Low Weight
· Forced Air Cooled
· Front Panel Indicators for Output Signal, Clip, Protect and Power
· Select High Pass Filter
· Gain Select Switch
TECHNICAL SPECIFICATIONS
| STEREO 8Ω | 170W | STEREO 4Ω | 300W |
|---|---|---|---|
| STEREO 2Ω | 550W | BRIDGED 4Ω | 650W |
| BRIDGED 2Ω | 1100W | Damping Factor | ≥380 |
| Frequency Response (±0.3dB) | 20Hz~20kHz | Frequency Response (-3.0dB) | 5Hz~70kHz |
| T.H.D (@ 1/3 Power) | ≤0.05% |
PRODUCT FEATURES
| Power Source | AC 220V, 60Hz | Input Sensitivity | 1V |
|---|---|---|---|
| Voltage Gain(@4Ω) | 30.8dB | S/N (@8Ω) | 106dB |
| Weight | 10.7kg | Dimensions(W x H x D mm) | 482 x 88 x 407 mm |
K500 Downloads
Description
· 2Ω Load Stable Per Channel, 4Ω Load Stable in Bridge Mono
· 2U Rack Space
· SMPS Available for High Efficiency and Low Weight
· Forced Air Cooled
· Front Panel Indicators for Output Signal, Clip, Protect and Power
· Select High Pass Filter
· Gain Select Switch
TECHNICAL SPECIFICATIONS
| STEREO 8Ω | 280W | STEREO 4Ω | 500W |
|---|---|---|---|
| STEREO 2Ω | 850W | BRIDGED 4Ω | 1000W |
| BRIDGED 2Ω | 1700W | Damping Factor | ≥450 |
| Frequency Response (±0.3dB) | 20Hz~20kHz | Frequency Response (-3.0dB) | 5Hz~70kHz |
| T.H.D (@ 1/3 Power) | ≤0.05% |
PRODUCT FEATURES
| Power Source | AC 220V, 60Hz | Input Sensitivity | 1V |
|---|---|---|---|
| Voltage Gain(@4Ω) | 30.8dB | S/N (@8Ω) | 106dB |
| Weight | 10.7kg | Dimensions(W x H x D mm) | 482 x 88 x 407 mm |
K900 Downloads
Description
· 2Ω Load Stable Per Channel, 4Ω Load Stable in Bridge Mono
· 2U Rack Space
· SMPS Available for High Efficiency and Low Weight
· Forced Air Cooled
· Front Panel Indicators for Output Signal, Clip, Protect and Power
· Select High Pass Filter
· Gain Select Switch
TECHNICAL SPECIFICATIONS
| STEREO 8Ω | 500W | STEREO 4Ω | 900W |
|---|---|---|---|
| STEREO 2Ω | 1500W | BRIDGED 4Ω | 1800W |
| BRIDGED 2Ω | 3000W | Damping Factor | ≥400 |
| Frequency Response (±0.3dB) | 20Hz~20kHz | Frequency Response (-3.0dB) | 5Hz~70kHz |
| T.H.D (@ 1/3 Power) | ≤0.05% |
PRODUCT FEATURES
| Power Source | AC 220V, 60Hz | Input Sensitivity | 1V |
|---|---|---|---|
| Voltage gain(@4Ω) | 35.8dB | S/N (@8Ω) | 106dB |
| Weight | 10.70kg | Dimensions(W x H x D mm) | 482 x 88 x 407 mm |
K1200 Downloads
Description
· 2Ω Load Stable Per Channel, 4Ω Load Stable in Bridge Mono
· 2U Rack Space
· SMPS Available for High Efficiency and Low Weight
· Forced Air Cooled
· Front Panel Indicators for Output Signal, Clip, Protect and Power
· Select High Pass Filter
· Gain Select Switch
TECHNICAL SPECIFICATIONS
| STEREO 8Ω | 700W | STEREO 4Ω | 1200W |
|---|---|---|---|
| STEREO 2Ω | 1900W | BRIDGED 4Ω | 2400W |
| BRIDGED 2Ω | 3800W | Damping Factor | ≥400 |
| Frequency Response (±0.3dB) | 20Hz~20kHz | Frequency Response (-3.0dB) | 5Hz~70kHz |
| T.H.D (@ 1/3 Power) | ≤0.05% |
PRODUCT FEATURES
| Power Source | AC 220V, 60Hz | Input Sensitivity | 1V |
|---|---|---|---|
| Voltage Gain(@4Ω) | 30.8dB | S/N (@8Ω) | 106dB |
| Weight | 10.7kg | Dimensions(W x H x D mm) | 482 x 88 x 407 mm |

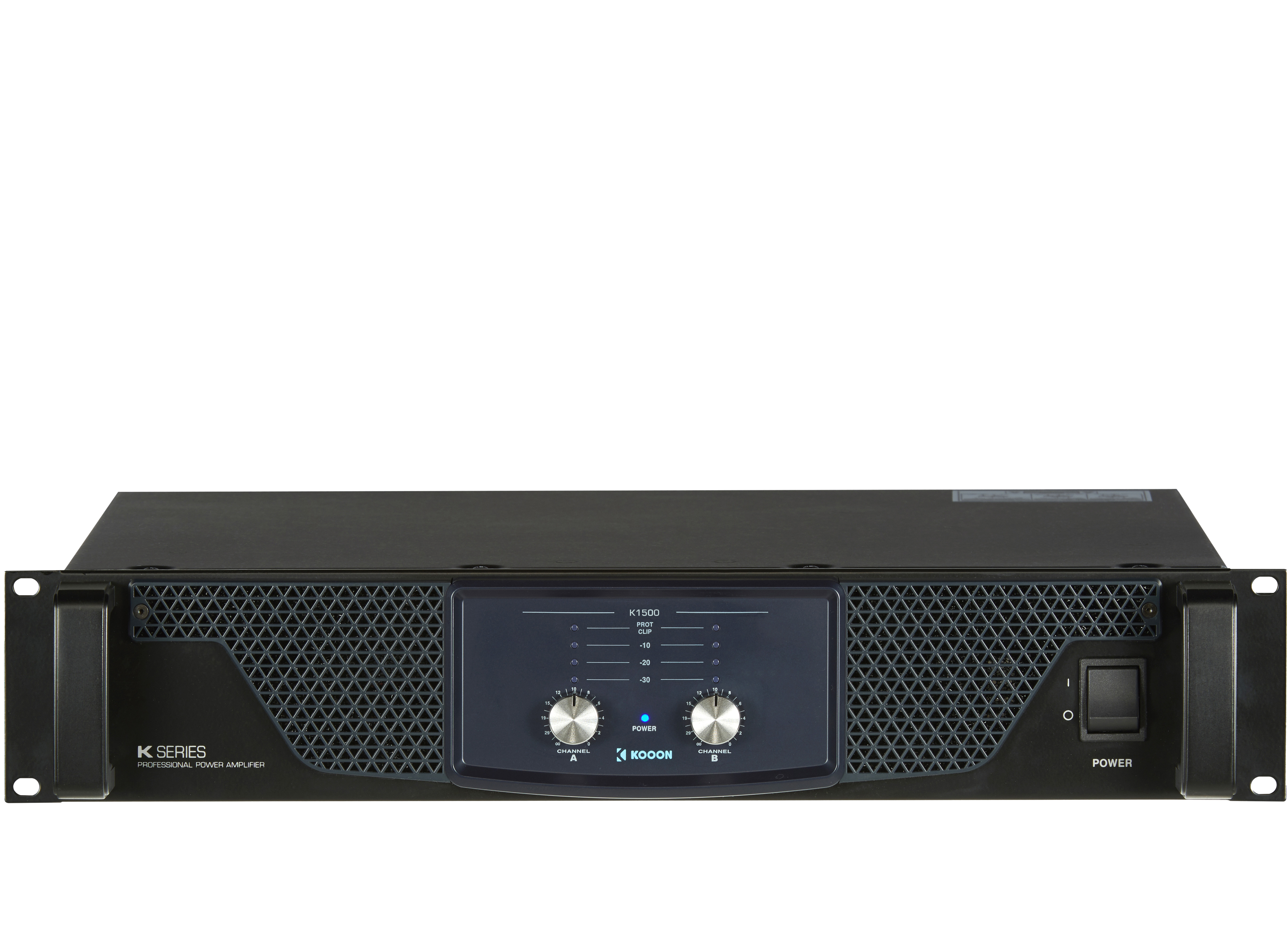

K1500 Downloads
Description
· 2Ω Load Stable Per Channel, 4Ω Load Stable in Bridge Mono
· 2U Rack Space
· SMPS Available for High Efficiency and Low Weight
· Forced Air Cooled
· Front Panel Indicators for Output Signal, Clip, Protect and Power
· Select High Pass Filter
· Gain Select Switch
TECHNICAL SPECIFICATIONS
| STEREO 8Ω | 900W | STEREO 4Ω | 1500W |
|---|---|---|---|
| STEREO 2Ω | 2250W | BRIDGED 4Ω | 3000W |
| BRIDGED 2Ω | 4500W | Damping Factor | ≥400 |
| Frequency Response (±0.3dB) | 20Hz~20kHz | Frequency Response (-3.0dB) | 5Hz~70kHz |
| T.H.D (@ 1/3 Power) | ≤0.05% |
PRODUCT FEATURES
| Power Source | AC 220V, 60Hz | Input Sensitivity | 1V |
|---|---|---|---|
| Voltage Gain(@4Ω) | 30.8dB | S/N (@8Ω) | 106dB |
| Weight | 10.7kg | Dimensions(W x H x D mm) | 482 x 88 x 407 mm |
