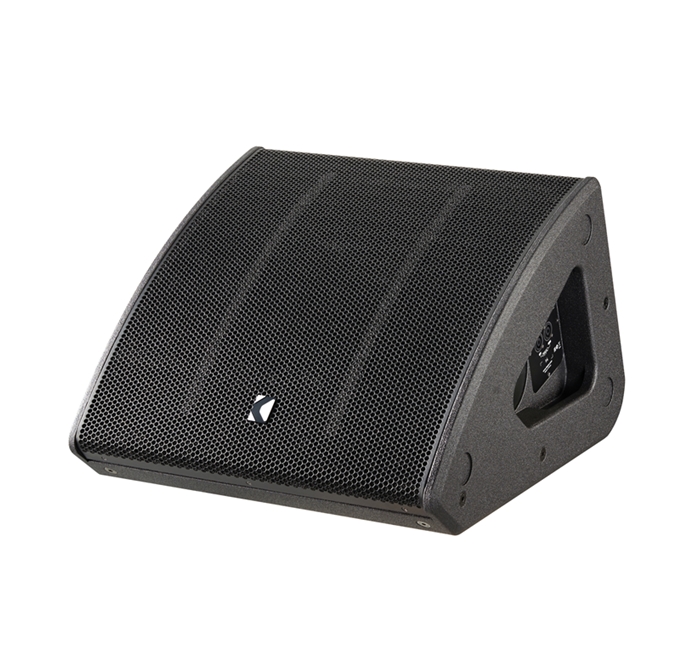

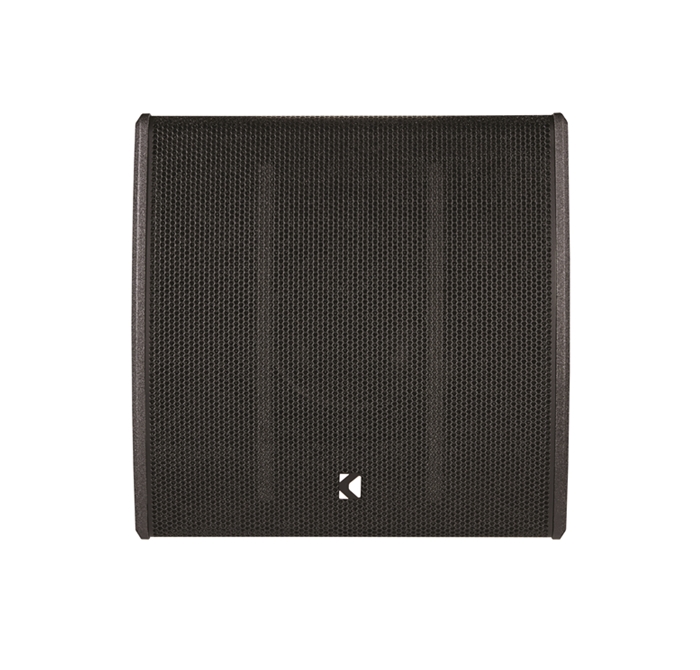

The role of stage monitor speakers is very important. Especially in large concert halls, direct and indirect sound from a large number of speakers and enthusiastic audience shouts will affect the monitoring environment of singers and performers. Therefore, stage monitoring must ensure sufficient sound pressure, clarity and straightness. The KM series are monitor speakers that play real value in this environment. By using a high-performance coaxial unit, compared with the compact housing size, it has a strong sound pressure and clear sound, and an ideal listening angle. In addition, the through hole can be used as a side-filled speaker or a main speaker for small and medium-sized spaces. There are two types of KM series, active type and passive type. The passive type can reproduce the best sound through a well-designed passive network. The active type uses the Powersoft DSP module and power module, and has built-in dedicated DSP data to reproduce better sound.
About ImP
Products
Downloads
KM Series
Coaxial Stage Monitor
KMseries
KM12 Downloads
Description
TECHNICAL SPECIFICATIONS
| Type | Passive | AES Power / Program Power / Peak Power | 350W / 700W / 1400W |
|---|---|---|---|
| Nominal Impedance | 8Ω | Sensitivity (1W / 1m) | 99dB |
| Max SPL | 130dB | Dispersion Angle(Horn) | 60° x 40° |
PRODUCT FEATURES
| Frequency Range (-10dB) | 45Hz ~ 18kHz | Weight | 22.86kg |
|---|---|---|---|
| Dimensions (W x H x D mm) | 510 x 377 x 543 (mm) ±5mm | Rigging Point | 12 x M10 inserts (4 x Bottom, 2 x Rear, 3 x Left, 3 x Right) |

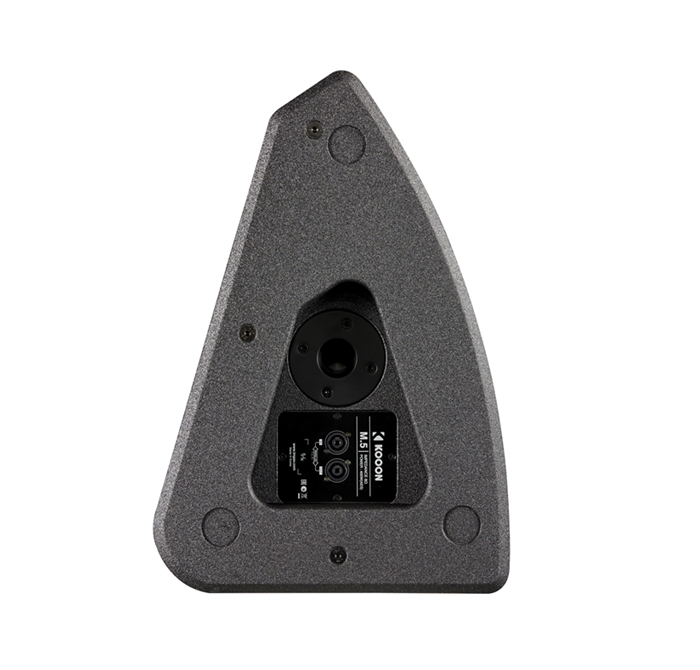

| Connection | 2 X Speakon (1+,1-) [Parallel] | Painting | Polyurea Coating |
KM15 Downloads
Description
· 15" High Performance Coaxial Driver
· Premium Birch PlyWood Enclosure
· Dedicated Passive Network
· Provide DSP Data

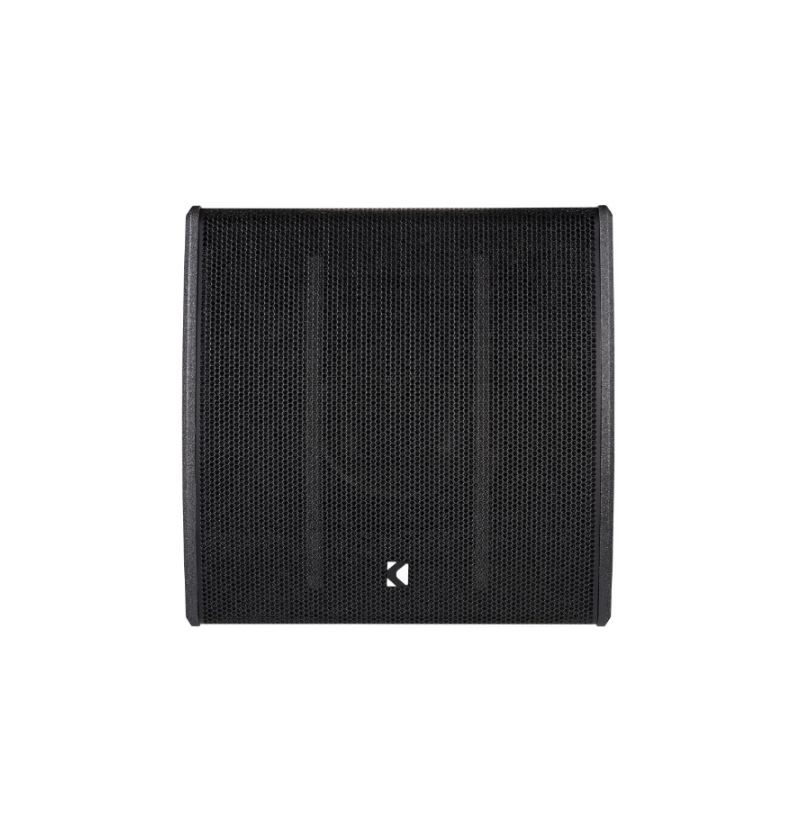

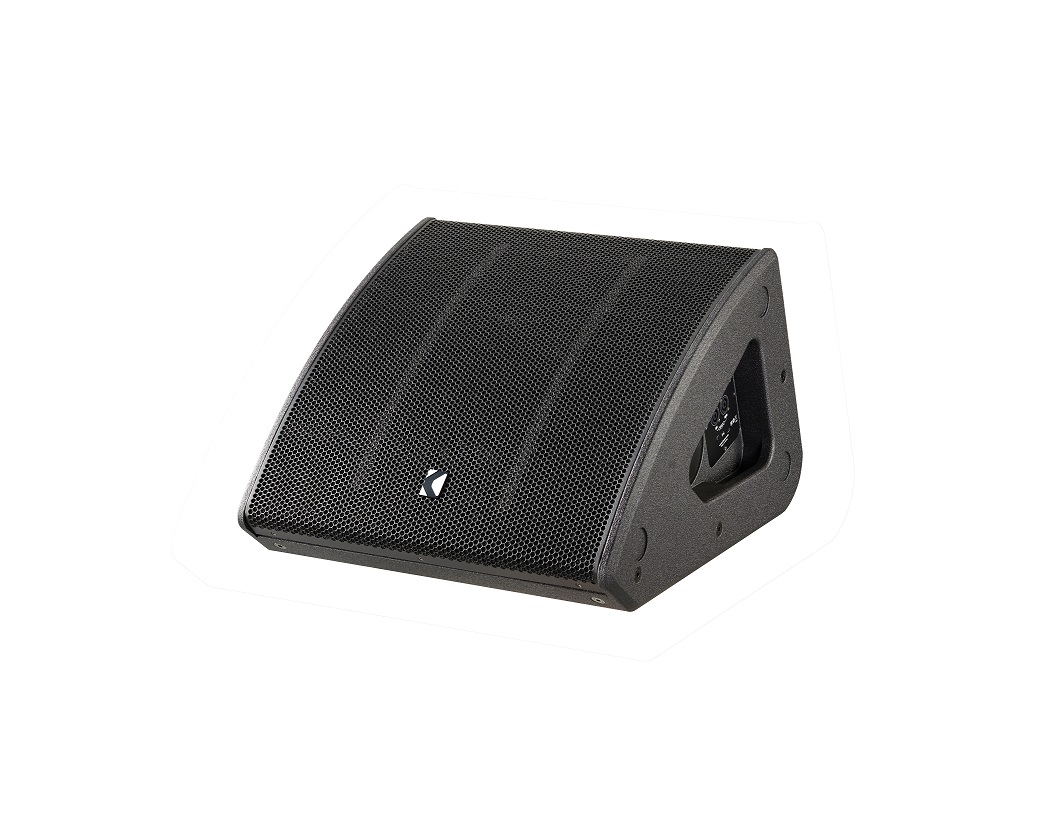

The KM15 is a stage monitor speaker with a 15" High Performance Coaxial Unit applied as a single. The powerful low-range and sharp high-pitched high-frequency ranges that emanate from a compact size give the listener a high sense of satisfaction. In particular, the KM15 is characterized by the strong sound pressure that bends the listener. This will be a great advantage on the stage and will give listeners great satisfaction. An enclosure made of Nordic BirchPlywood is used, and a precisely tuned passive network is applied, making it the best anytime, anywhere. You can play the sound, and if you use a dedicated amplifier, you can feel even more improved sound.
TECHNICAL SPECIFICATIONS
| Type | Passive | AES Power / Program Power / Peak Power | 400W / 800W / 1600W |
|---|---|---|---|
| Nominal Impedance | 8Ω | Sensitivity (1W / 1m) | 99dB |
| Max SPL | 131dB | Dispersion Angle(Horn) | 60° x 40° |
PRODUCT FEATURES
| Frequency Range (-10dB) | 40Hz ~ 18kHz | Weight | 27.46kg |
|---|---|---|---|
| Dimensions (W x H x D mm) | 590 x 403 x 606 (mm) ±5mm | Rigging Point | 12 x M10 inserts (4 x Bottom, 2 x Rear, 3 x Left, 3 x Right) |
| Connection | 2 X Speakon (1+,1-) [Parallel] | Painting | Polyurea Coating |
KM12P Downloads
Description
· 12" High Performance Coaxial Driver
· Premium Birch PlyWood Enclosure
· Dedicated Powersoft DSP & Power Module
· Provide DSP Data
The KM12P is a powered version of the KM12, a stage monitor speaker with a single 12" High Performance Coaxial Unit applied. Its compact size is incredibly powerful and its sharp straightness is very attractive. It will be an advantage and give users a great satisfaction The enclosure using Birch Plywood from Northern Europe is used, and it boasts the best sound as well as thoroughly proven durability by using DSP and Power Module from Powersoft, a world-class Power Amp manufacturer. Built-in optimal data allows you to feel the best sound anytime, anywhere.
TECHNICAL SPECIFICATIONS
| Type | Powered | AES Power | Channel per 1000W |
|---|---|---|---|
| Nominal Impedance | None | Sensitivity (1W / 1m) | 99dB |
| Max SPL | 130dB | Dispersion Angle(Horn) | 60° x 40° |
PRODUCT FEATURES
| Frequency Range (-10dB) | 45Hz ~ 18kHz | Weight | 23.24kg |
|---|---|---|---|
| Dimensions (W x H x D mm) | 510 x 377 x 543 (mm) ±5mm | Rigging Point | 12 x M10 inserts (4 x Bottom, 2 x Rear, 3 x Left, 3 x Right) |

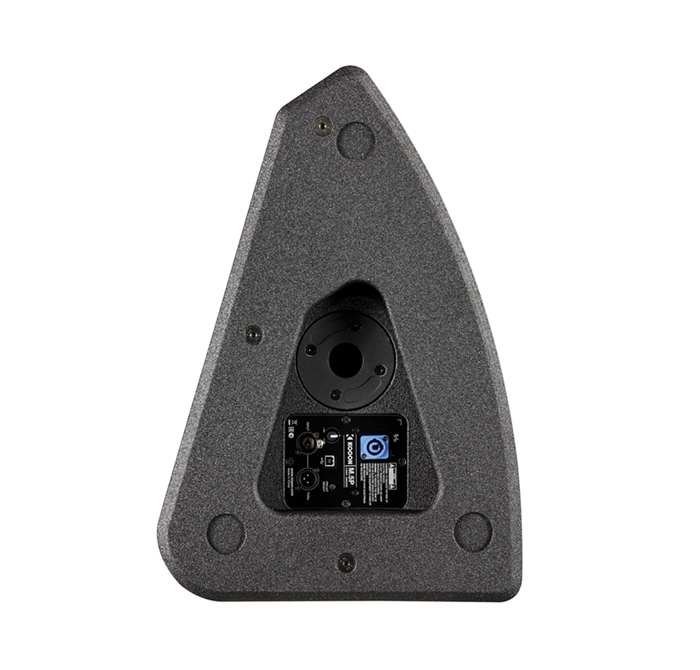

| Connection | 1 x Powerkon , 1 x XLR(M) , 1 x XLR(F) | Painting | Polyurea Coating |
KM15P Downloads
Description
· 15" High Performance Coaxial Driver
· Premium Birch PlyWood Enclosure
· Dedicated Powersoft DSP & Power Module
· Provide DSP Data

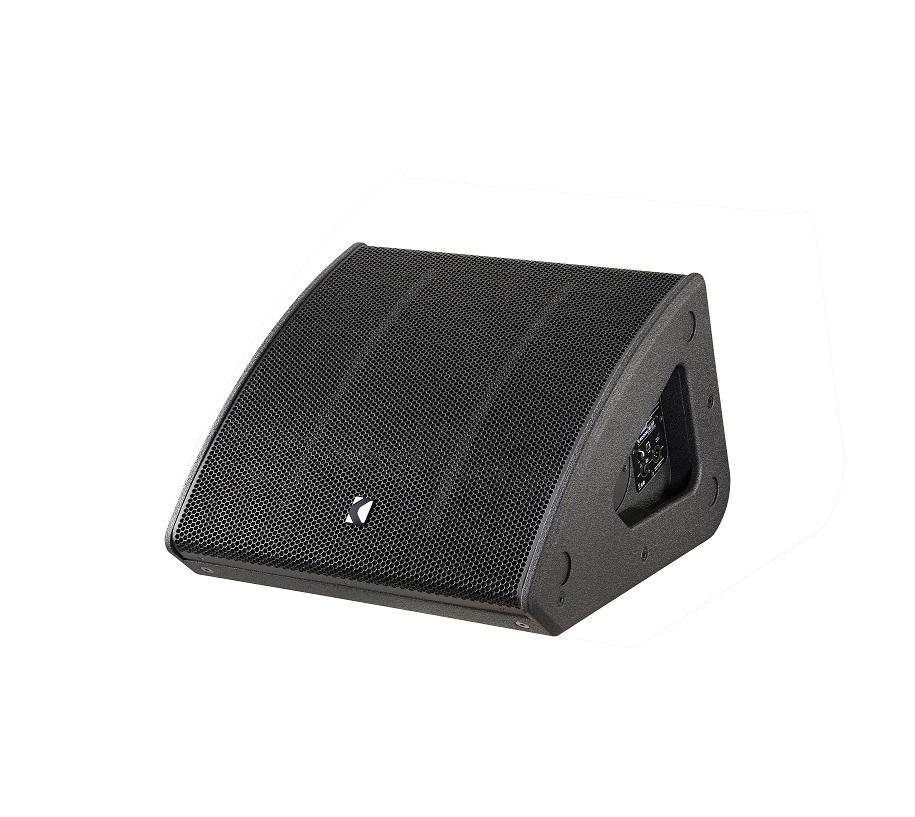

The KM15P is a powered version of the KM15, a stage monitor speaker with a single 15" High Performance Coaxial Unit. The incredibly powerful sound pressure and sharp straightness of the compact size are very attractive, and these points will be a great advantage on the stage and will give users great satisfaction. The enclosure using Birch Plywood from Northern Europe is used, and it boasts the best sound as well as thoroughly proven durability by using DSP and Power Module from Powersoft, a world-class Power Amp manufacturer. Built-in optimal data allows you to feel the best sound anytime, anywhere.
TECHNICAL SPECIFICATIONS
| Type | Powered | AES Power | Channel per 1000W |
|---|---|---|---|
| Nominal Impedance | None | Sensitivity (1W / 1m) | 99dB |
| Max SPL | 131dB | Dispersion Angle(Horn) | 60° x 40° |
PRODUCT FEATURES
| Frequency Range (-10dB) | 40Hz ~ 18kHz | Weight | 27.68kg |
|---|---|---|---|
| Dimensions (W x H x D mm) | 590 x 403 x 606 (mm) ±5mm | Rigging Point | 12 x M10 inserts (4 x Bottom, 2 x Rear, 3 x Left, 3 x Right) |

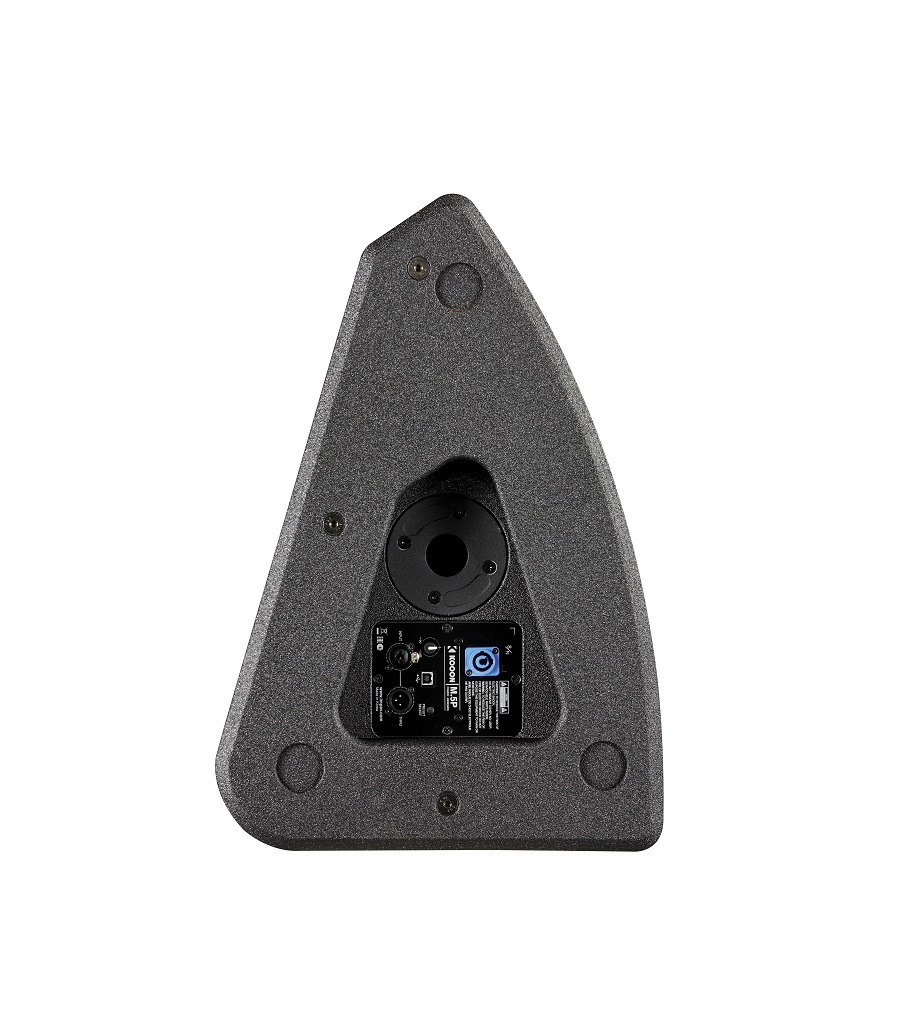

| Connection | 1 x Powerkon , 1 x XLR(M) , 1 x XLR(F) | Painting | Polyurea Coating |
